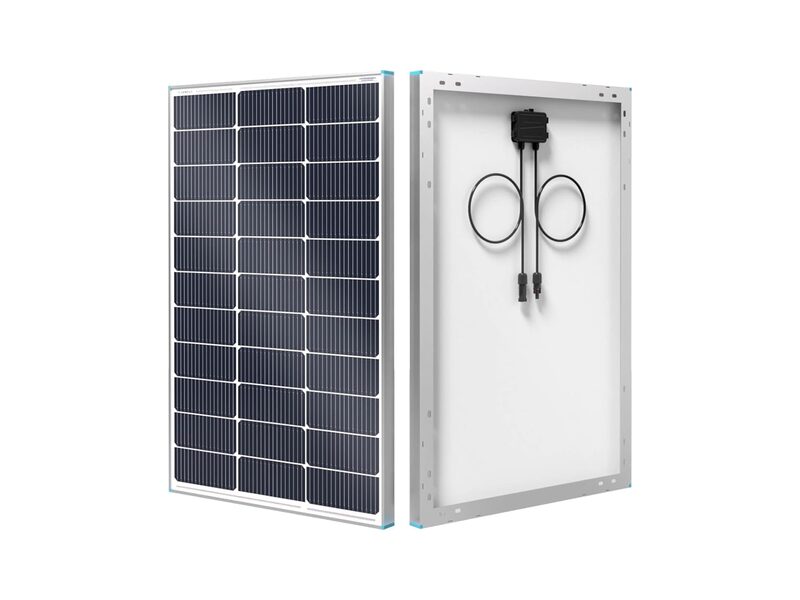

Renogy 100W Rigid Panel
(6 reviews)
100W monocrystalline with N-type cells at 25% cell efficiency and a rugged aluminium frame: the Renogy rigid panel is the reliable base of any fixed solar setup.
- Power: 100W (N-type 16BB monocrystalline)
- Efficiency: 20% (module), cells up to 25%
- Frame: Anodised aluminium, tempered glass
- Format: Rigid, about 5.9 kg, 86.5 x 57.8 cm
- N-type cells, 20% module efficiency, rugged frame
Detailed overview: Renogy 100W 12V monocrystalline solar panel

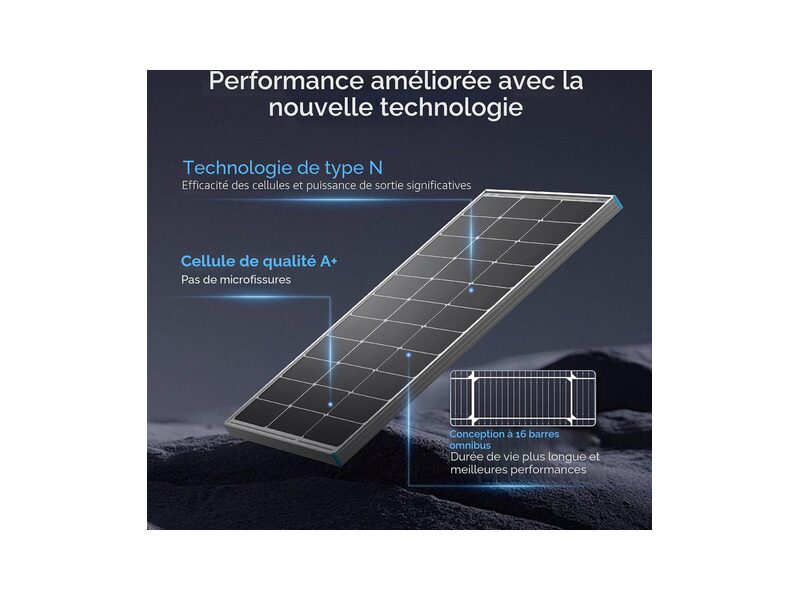

The Renogy 100W 12V rigid solar panel is a natural fit for forming the base of a fixed solar installation: RV roof, converted van, cabin, boat or a small off-grid setup. Its latest generation is built around N-type 16BB monocrystalline cells, a technology Renogy rates at up to 25% cell efficiency, for a 20% module efficiency, among the best in its class.
This high efficiency means that, at equal surface, it produces more electricity than a conventional PERC panel: up to about 500Wh per day depending on sunlight. That is a real asset when available surface is limited, such as on a van roof. N-type cells also offer better heat tolerance and slower degradation over time.

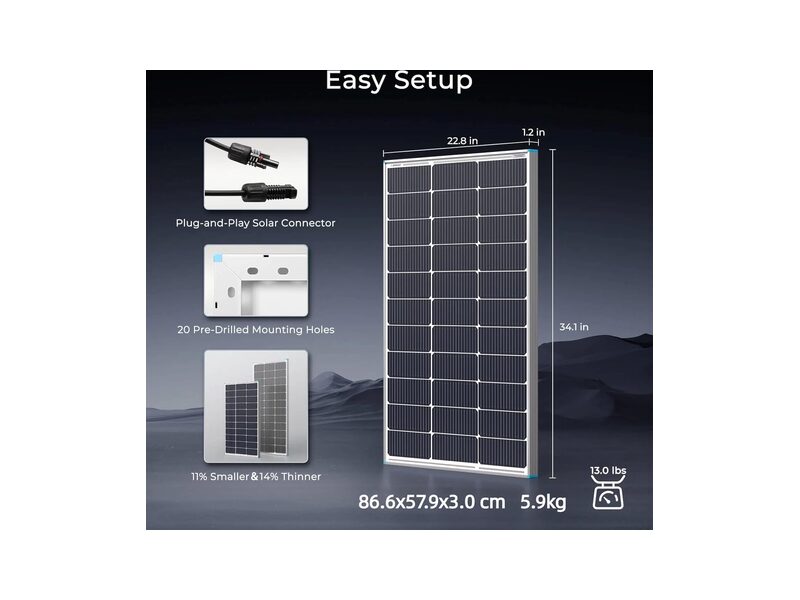

On the build side, it focuses on ruggedness and durability: an anodised aluminium frame and tempered glass that withstand the weather and snow or wind loads, for an installation meant to stay outside for many years. It stays relatively light for a rigid panel, around 5.9 kg, which makes roof mounting easier. It connects via standard MC4 connectors, compatible with almost all solar controllers.
Its only constraints are those of any fixed panel: it requires installation (mounting, MC4 wiring, an MPPT charge controller to be supplied separately), and you need several to build a high-power setup. Its output finally depends heavily on orientation and sunlight. But for the base of a reliable, high-performance and durable solar kit, the Renogy 100W rigid panel remains a proven benchmark.
Full specifications
Detailed characteristics
Panel
| Peak power?Rated panel power in full sun (STC conditions). | 100 W |
|---|---|
| Cell technology?Cell type; monocrystalline offers the best efficiency, flexible CIGS tolerates shading better. | Monocrystalline |
| Conversion efficiency?Share of solar energy converted to electricity; higher means a more compact panel for the same power. | 20 % |
| Panel type?Foldable (portable), rigid framed (fixed install) or flexible (curved surfaces). | Rigid (framed) |
| Bifacial?Also captures reflected light on its rear side, for extra output. | No |
Electrical specifications
| Voltage at max power (Vmp)?Voltage at the maximum power point. | 19.97 V |
|---|---|
| Current at max power (Imp)?Current at the maximum power point. | 5.01 A |
| Open-circuit voltage (Voc)?Open-circuit voltage; check against your station/controller MPPT input range. | 22.79 V |
| Short-circuit current (Isc)?Maximum short-circuit current. | 5.31 A |
Outputs and connectors
| Output connectors?Output socket type(s) (MC4, XT60, Anderson, DC, USB…); determines compatibility with your station. | MC4 |
|---|
Durability and format
| Ingress protection?Water and dust resistance (IP rating). | IP65 |
|---|---|
| Adjustable kickstand?Kickstand or support to angle the panel toward the sun. | No |
| Weight?Weight of the panel. | 5.9 kg |
| Unfolded dimensions (L × W × D)?Footprint when unfolded, in millimetres. | 865 × 578 × 30 mm |
Warranty
| Warranty?Length of the manufacturer's warranty. | 10 years |
|---|
User manual / Instructions for use (PDF)
☀ How fast does this panel recharge a power station?
The Renogy 100W Rigid Panel panel (100 W) recharges a Jackery Explorer 1000 v2 (1070 Wh) in ~15h or an EcoFlow Delta 2 Max (2048 Wh) in ~29h, in full sun.
| Compact / mid | Recharge |
|---|---|
| Allpowers Volix P300 (256 Wh) | ~3h40 |
| Bluetti EB3A (268 Wh) | ~3h50 |
| Jackery Explorer 500 v2 (512 Wh) | ~7h20 |
| EcoFlow River 2 Pro (768 Wh) | ~11h |
| High capacity | Recharge |
|---|---|
| Anker Solix F2000 (2048 Wh) | ~29h |
| Allpowers R3500 V2 (2880 Wh) | ~41h |
| Jackery Explorer 3000 v2 (3072 Wh) | ~44h |
| Allpowers R4000 (3456 Wh) | ~49h |
Estimate in full sun (ideal conditions). In practice, count on 3 to 5 hours of truly useful sunlight per day, so a full recharge may span several days depending on weather and orientation.
Compatible power stations
A selection of power stations whose solar input accepts this photovoltaic panel, best match first.
Comparison
How does the Renogy 100W rigid panel compare with rival fixed panels?
| Criterion | Renogy 100W N-type | Victron BlueSolar 115W | Offgridtec 100W |
|---|---|---|---|
| Power | 100W | 115W | 100W |
| Efficiency | 20% (module) | About 21% | About 21% |
| Frame | Aluminium | Aluminium | Aluminium |
| Weight | About 5.9 kg | About 8.5 kg | About 7 kg |
The Renogy 100W rigid panel stands out for its N-type 16BB cells, rated up to 25% cell efficiency, and for its relative lightness (about 5.9 kg). Its 20% module efficiency puts it in the middle of the category. The Victron delivers slightly more raw power (115W) but is considerably heavier. For an installation where weight and ease of mounting matter, the Renogy remains the most rational choice.
Related video
Video: Renogy 100W Solar Panel Review | Full Demo of my Off-Grid Power Setup - Published on 31/08/2025
Our tester's review: Julien De Jurquet
The Renogy 100W rigid panel is a classic of fixed solar setups, and its latest N-type cell version marks a real step forward. Its 20% module efficiency, with cells rated up to 25%, shows: at equal surface, it produces noticeably more than a conventional PERC panel, which matters when roof space on a van is limited. The aluminium frame and tempered glass inspire confidence for an installation that will stay outside for years, and we like that it stays relatively light (about 5.9 kg) for a rigid panel. Its real output obviously depends on sunlight and orientation, but well-aimed at the sun, it easily charges a leisure battery via an MPPT controller. The only things to plan for are the installation (mounting, MC4 wiring, a separately supplied controller) and needing several panels for a large setup. For the base of a reliable, durable solar kit, it is a safe bet.
Frequently asked questions: Renogy 100W 12V monocrystalline solar panel
Well-aimed at the sun, it produces up to about 500Wh per day depending on sunlight. Its real output depends on the region, season, orientation and tilt of the panel.
Yes. A solar panel must always be connected to a battery via a charge controller (ideally MPPT), which is not included. The panel connects via standard MC4 connectors.
N-type 16BB cells offer higher efficiency (up to 25% at cell level), better heat tolerance and slower degradation than conventional PERC cells, for greater output at equal surface.
Yes. Its aluminium frame and tempered glass make it rugged for fixed mounting on an RV, van or boat roof. Relatively light (about 5.9 kg), it is easy to install and weatherproof.
