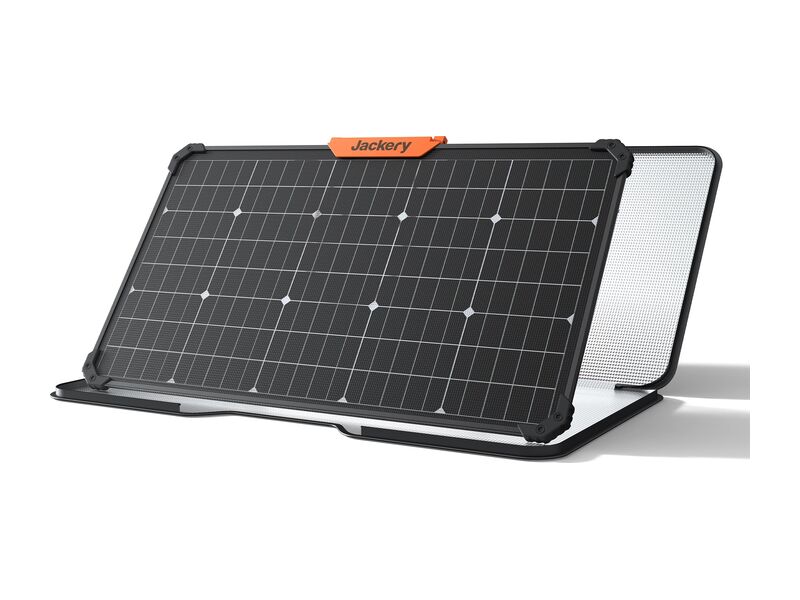

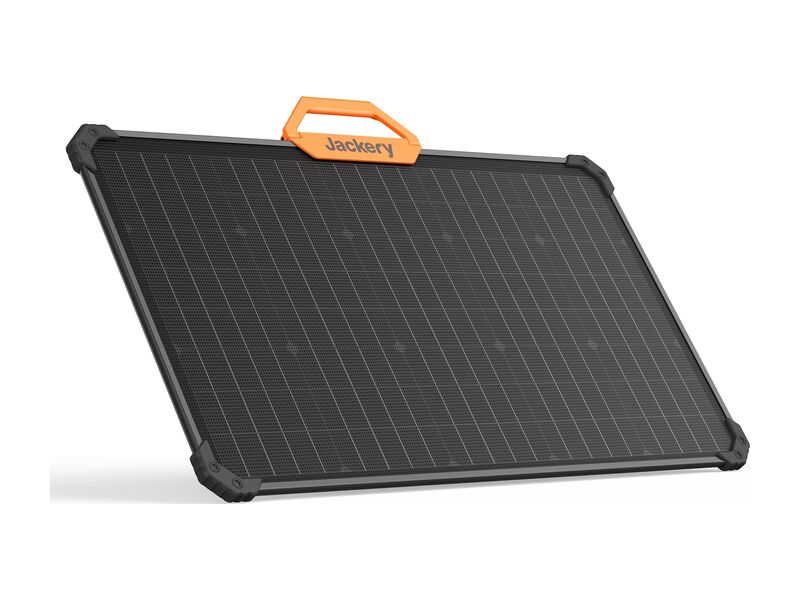

Jackery SolarSaga 80W
(3 reviews)
A panel that captures light from both sides: the dual-sided Jackery SolarSaga 80W reaches 25% efficiency, is waterproof (IP68) and folds to follow you anywhere.
Buy at AmazonAs an Amazon Associate I earn from qualifying purchases.
Characteristics
- Power: 80W
- Technology: Dual-sided monocrystalline (25%)
- Protection: IP68, 2.8mm toughened glass
- Weight: About 5 kg (foldable)
- Dual-sided 25% efficiency panel, light and waterproof
Detailed overview: Jackery SolarSaga 80W dual-sided solar panel
The Jackery SolarSaga 80W is a foldable, portable solar panel that stands out for its dual-sided monocrystalline design. Unlike a conventional panel that captures light only from its front, the SolarSaga 80W has extra-white back glass (92% transmittance) letting it also recover light reflected from the ground, boosting its energy output.
This technology lets it reach a 25% conversion efficiency, among the highest for a portable panel, where many portable panels cap around 22-23%. It is the first consumer photovoltaic product certified by TÜV SÜD under the IEC TS63163 standard, a mark of industrial quality.
For ruggedness, it is made of 2.8mm toughened glass, protected at all four corners by rubber bumpers, and has an IP68 certification making it waterproof and dust-resistant, for worry-free outdoor use in all weather. Yet it stays light, around 5 kg, with a built-in carrying handle that eases transport hiking or camping.
The SolarSaga 80W is compatible with Jackery power stations (up to 12 panels can be connected in parallel on the largest stations), and comes with a 2m extension cable for placement freedom, plus a reflective carrying case. Note that this model is mainly distributed in the North American market and stays barely available in France, where Jackery mainly offers the SolarSaga 100W and 200W. Technically, it nonetheless makes an excellent portable panel, combining efficiency, ruggedness and light weight.
Full specifications
Detailed characteristics (EAN: 0810105524833)
Panel
| Peak power?Rated panel power in full sun (STC conditions). | 80 W |
|---|---|
| Cell technology?Cell type; monocrystalline offers the best efficiency, flexible CIGS tolerates shading better. | Monocrystalline |
| Conversion efficiency?Share of solar energy converted to electricity; higher means a more compact panel for the same power. | 25 % |
| Panel type?Foldable (portable), rigid framed (fixed install) or flexible (curved surfaces). | Foldable |
| Bifacial?Also captures reflected light on its rear side, for extra output. | Yes |
Electrical specifications
| Voltage at max power (Vmp)?Voltage at the maximum power point. | 22 V |
|---|---|
| Current at max power (Imp)?Current at the maximum power point. | 3.64 A |
| Open-circuit voltage (Voc)?Open-circuit voltage; check against your station/controller MPPT input range. | 28.5 V |
| Short-circuit current (Isc)?Maximum short-circuit current. | 3.71 A |
Outputs and connectors
| Output connectors?Output socket type(s) (MC4, XT60, Anderson, DC, USB…); determines compatibility with your station. | DC |
|---|
Durability and format
| Ingress protection?Water and dust resistance (IP rating). | IP68 |
|---|---|
| Adjustable kickstand?Kickstand or support to angle the panel toward the sun. | Yes |
| Weight?Weight of the panel. | 5.1 kg |
| Unfolded dimensions (L × W × D)?Footprint when unfolded, in millimetres. | 906 × 528 × 27 mm |
Warranty
| Warranty?Length of the manufacturer's warranty. | 3 years |
|---|
User manual / Instructions for use (PDF)
☀ How fast does this panel recharge a power station?
The Jackery SolarSaga 80W panel (80 W) recharges a Jackery Explorer 1000 v2 (1070 Wh) in ~19h or an EcoFlow Delta 2 Max (2048 Wh) in ~37h, in full sun.
| Compact / mid | Recharge |
|---|---|
| Jackery Explorer 100 Plus (99 Wh) | ~1h45 |
| Allpowers Volix P300 (256 Wh) | ~4h35 |
| Bluetti EB3A (268 Wh) | ~4h45 |
| EcoFlow River 3 Max Plus (sans fil) (858 Wh) | ~15h |
| High capacity | Recharge |
|---|---|
| Anker Solix C2000 Gen 2 (2048 Wh) | ~37h |
| Allpowers R3500 V2 (2880 Wh) | ~51h |
| Allpowers R4000 (3456 Wh) | ~62h |
| EcoFlow Delta Pro 3 (4096 Wh) | ~73h |
Estimate in full sun (ideal conditions). In practice, count on 3 to 5 hours of truly useful sunlight per day, so a full recharge may span several days depending on weather and orientation.
Compatible power stations
A selection of power stations whose solar input accepts this photovoltaic panel, best match first.
Comparison
How does the Jackery SolarSaga 80W compare with other SolarSaga panels?
| Criterion | SolarSaga 80W | SolarSaga 100W | SolarSaga 200W |
|---|---|---|---|
| Power | 80W | 100W | 200W |
| Technology | Dual-sided | Single-sided | Single-sided |
| Efficiency | 25% | ~23% | ~24% |
| Weight | ~5 kg | ~4 kg | ~8 kg |
The SolarSaga 80W stands out for its dual-sided technology and high 25% efficiency, above the single-sided SolarSaga 100W and 200W, while staying light and very rugged (IP68). The 100W offers slightly higher rated power for a similar weight, and the 200W targets large stations. For a compact high-efficiency panel, the dual-sided 80W is very appealing, subject to its availability.
Related video
Video: Jackery DUAL SIDED Solar Panel Review Testing Jackery SolarSaga 80w Solar Panel - Published on 04/11/2022
Our tester's review: Julien De Jurquet
The Jackery SolarSaga 80W stands out for its dual-sided technology, still rare on portable panels. By capturing light from the front and the back (thanks to the extra-white glass on the rear), it gains efficiency and climbs to 25% conversion, which is excellent for a portable panel. In use, it efficiently recharges a Jackery station in full sun, and its build inspires confidence: toughened glass, corners protected by rubber bumpers, IP68 certification making it impervious to rain and dust. Its built-in handle and contained weight (around 5 kg) make it easy to carry hiking or camping. Points to note: like any solar panel, its real output depends heavily on sunlight and orientation (you rarely get the theoretical 80W), and above all this model is mainly distributed in the North American market, so barely available in France. But technically, it is an excellent portable panel, rugged and high-performing.
Frequently asked questions: Jackery SolarSaga 80W dual-sided solar panel
A dual-sided panel captures light from the front and the back (thanks to the extra-white rear glass recovering light reflected from the ground). This boosts energy output and lets the SolarSaga 80W reach a 25% efficiency.
Yes, it is designed for Jackery power stations. On the largest stations, up to 12 panels can be connected in parallel to speed up solar recharging. A 2m extension cable is included.
Yes. The SolarSaga 80W is IP68 certified, so waterproof and dust-resistant, and is made of 2.8mm toughened glass with protected corners. It can be used with peace of mind outdoors in all weather.
This model is mainly distributed in the North American market and stays barely available in France, where Jackery mainly offers the SolarSaga 100W and 200W panels. Its local availability may therefore be limited.
